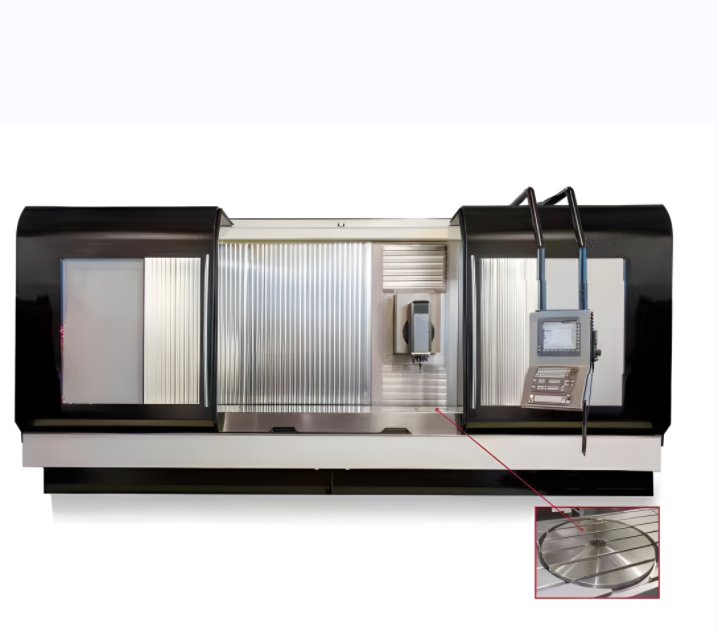

5-Axis Traveling Column Machining Center
- It is column moving with swing heads+embedded rotary table which originated design from Europe.

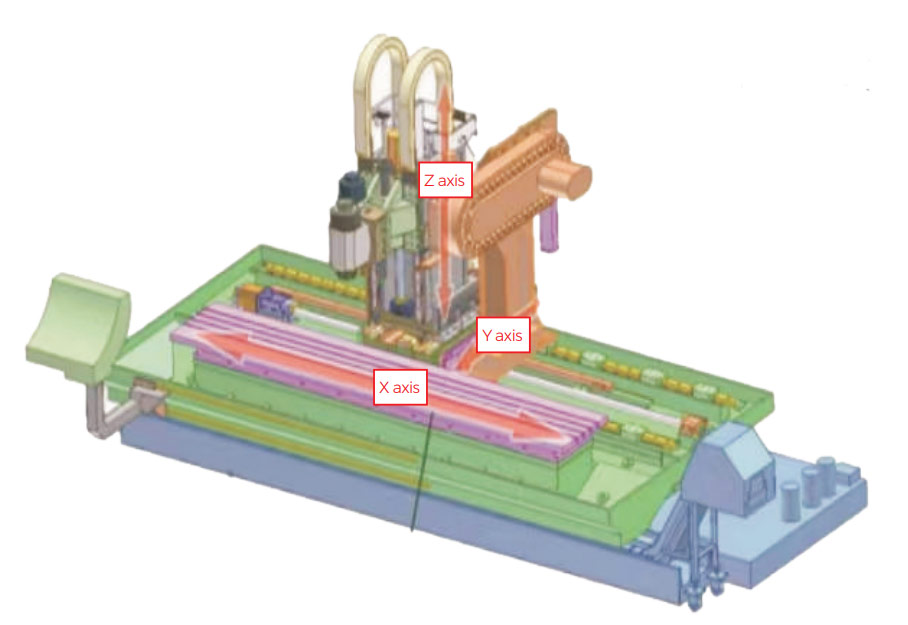

- The column move laterally in the X-axis direction.
- All mechanical and electrical components are imported.
- High rigidity and accuracy machine.

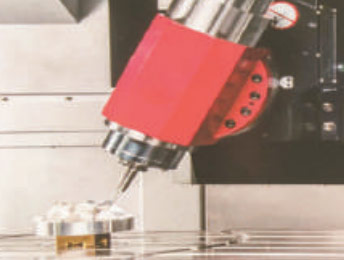

- B-axis swing head driven by worm gear and torque motor.
- Standard equip with Heidenhain circular grating encoder of indexing 0.001°.
- Swing angle -120 º~+120º.

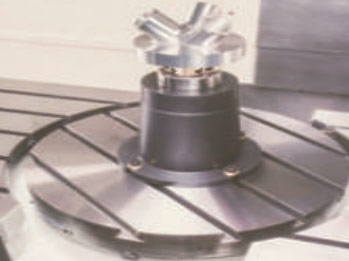

- C-axis embedded rotary table driven by torque motor in elongated table.
- Standard equip with Heidenhain circular grating encoder of indexing 0.001°.
- Table rotating degree 360°with 0.001°indexing.
UBSeries5-Axis Traveling Column Machining Center
- UB1300
UB1300C - UB1800
UB1800C

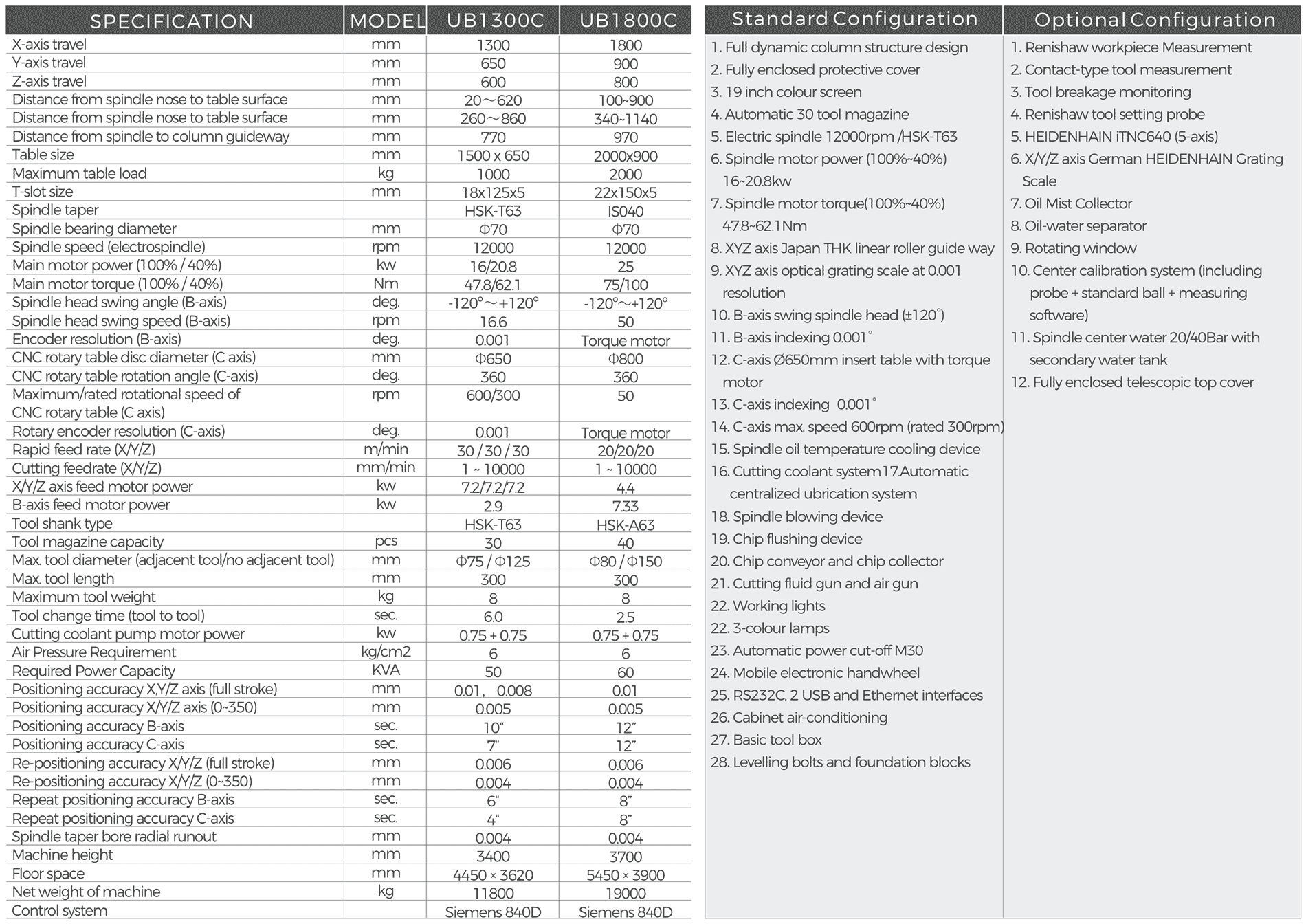

PARAMETERS&CONFIGURATION
