5-Axis Horizontal Machining Center

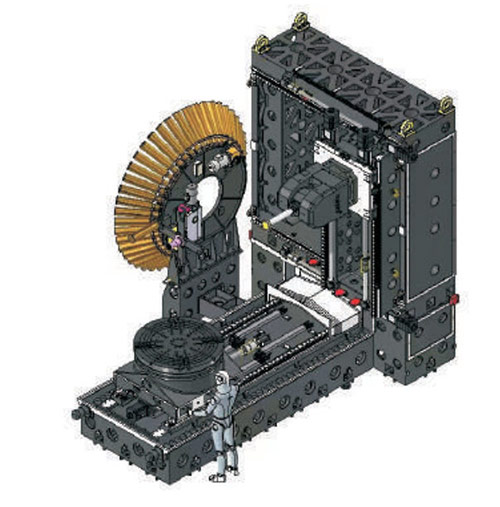

- 5-axis HMC originates from europe, superstructure design.
- Double ball screw and motor synchronic drive the slide seat on the frame for X-axis travel.
- Excellent rigidity, fast speed, and smooth movement.
- B-axis mechanical spindle with gear transmission, speed at 3000rpm.
- Power at 22/41kw with torque 210-399Nm.
- Italian Baruffaldi gear box (1:4) torque reach up to 840/1596Nm.
- A-axis standard torque 2987Nm. Clamping torque 6000Nm.
- Positioning accuracy 8 sec.,repeat position accuracy 4 sec.

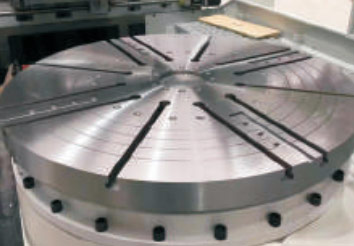

- B-axis torque motor workbench (Ø 1250/1400/ 1600mm) with 360 °rotation angle and 0.001° indexing.

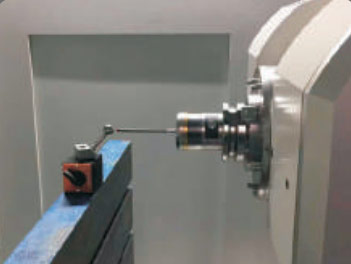

- Equip with grating encoder achieve higher positioning accuracy.
EUSeries5-Axis Horizontal Machining Center
- EH-80E
EH-80S
EH-80EV
EH-80EU
EH-100E
EH-IOOS - EH-100EV
EH-IOOEU
EH-125EV
EH-125EU
EH-140EV
EH-140EU - EH-160EV
EH-160EU

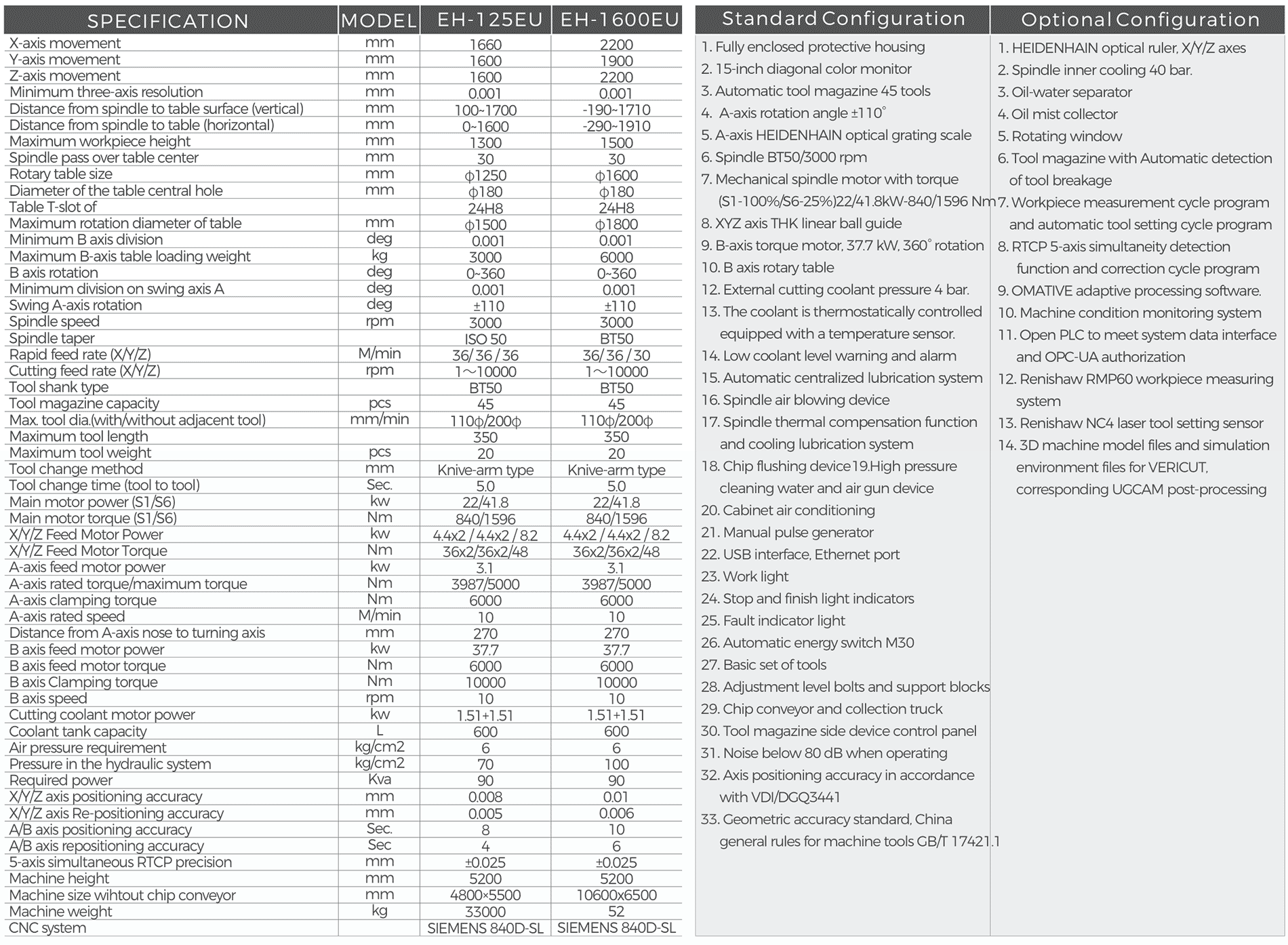

PARAMETERS&CONFIGURATION
