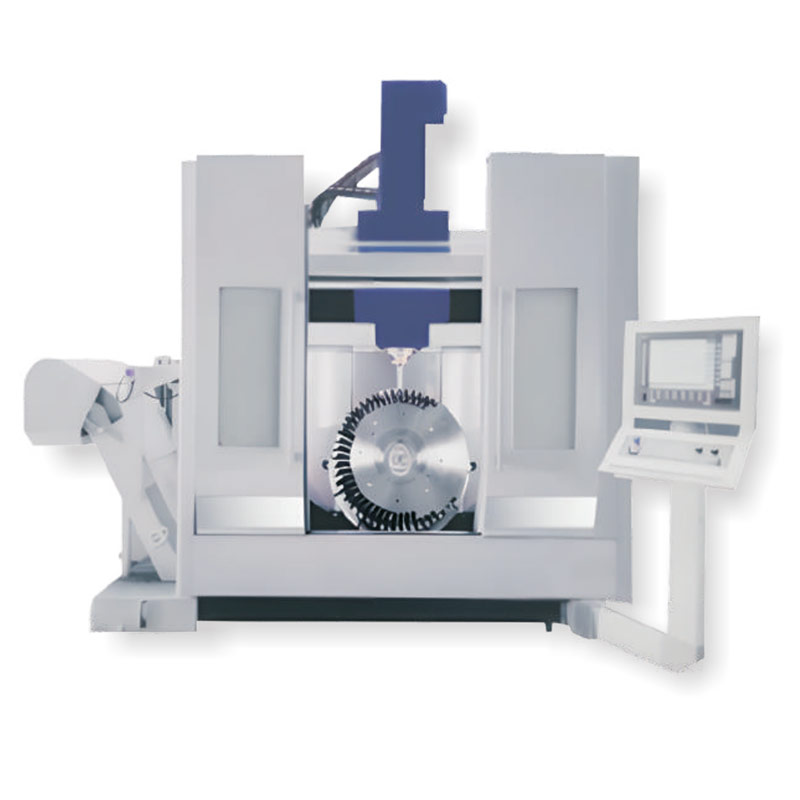

5-Axis Crane Vertical Machining Center

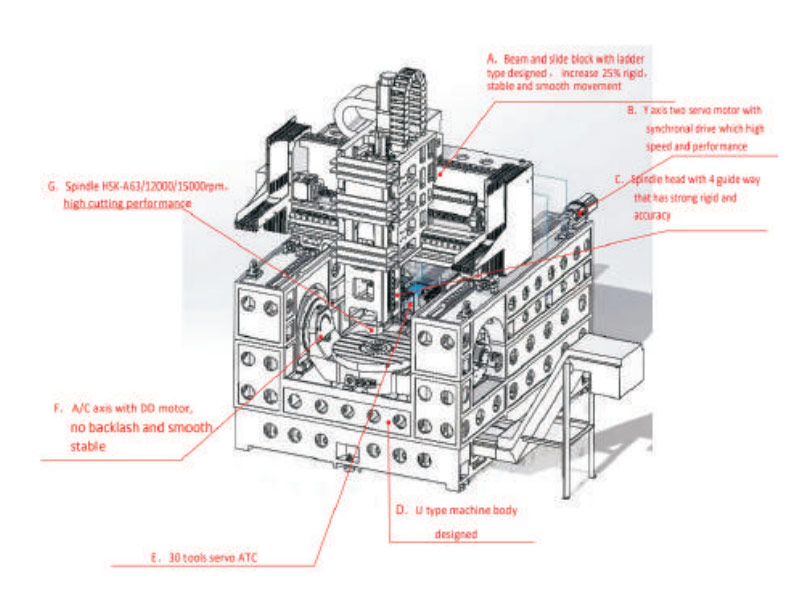

- High-strength gantry structure with crane.
- Trapezoid structure of crossbeam and sliding seat.
- Y- axis with double ball screw and synchronous motor.
- Z-axis has 4 guide rails for sliding.
- Stable and high-precision design.

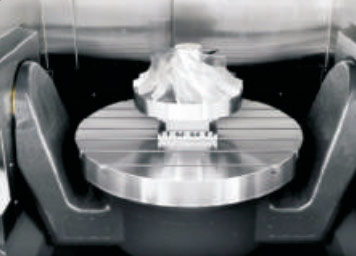

- A/C axis with DD motor rotary table speed at 60rpm.
- A axis tilting ±120°,C-axis rotating 360°.
- C-axis with turning function speed at 1000rpm (DX5- 650T)/800rpm(DX5-800T), position accuracy 8sec, repeat accuracy 4sec.
- High speed cutting performance. 12000/15000/20000rpm for options.
- Spindle oil cooler.
- Spindle direct drive.

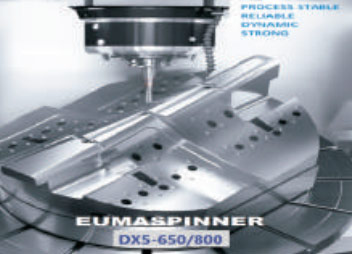

DX5Series5-Axis Crane Vertical Machining Center
- DX5-650
DX5-800 - DX5-650T
DX5-800T

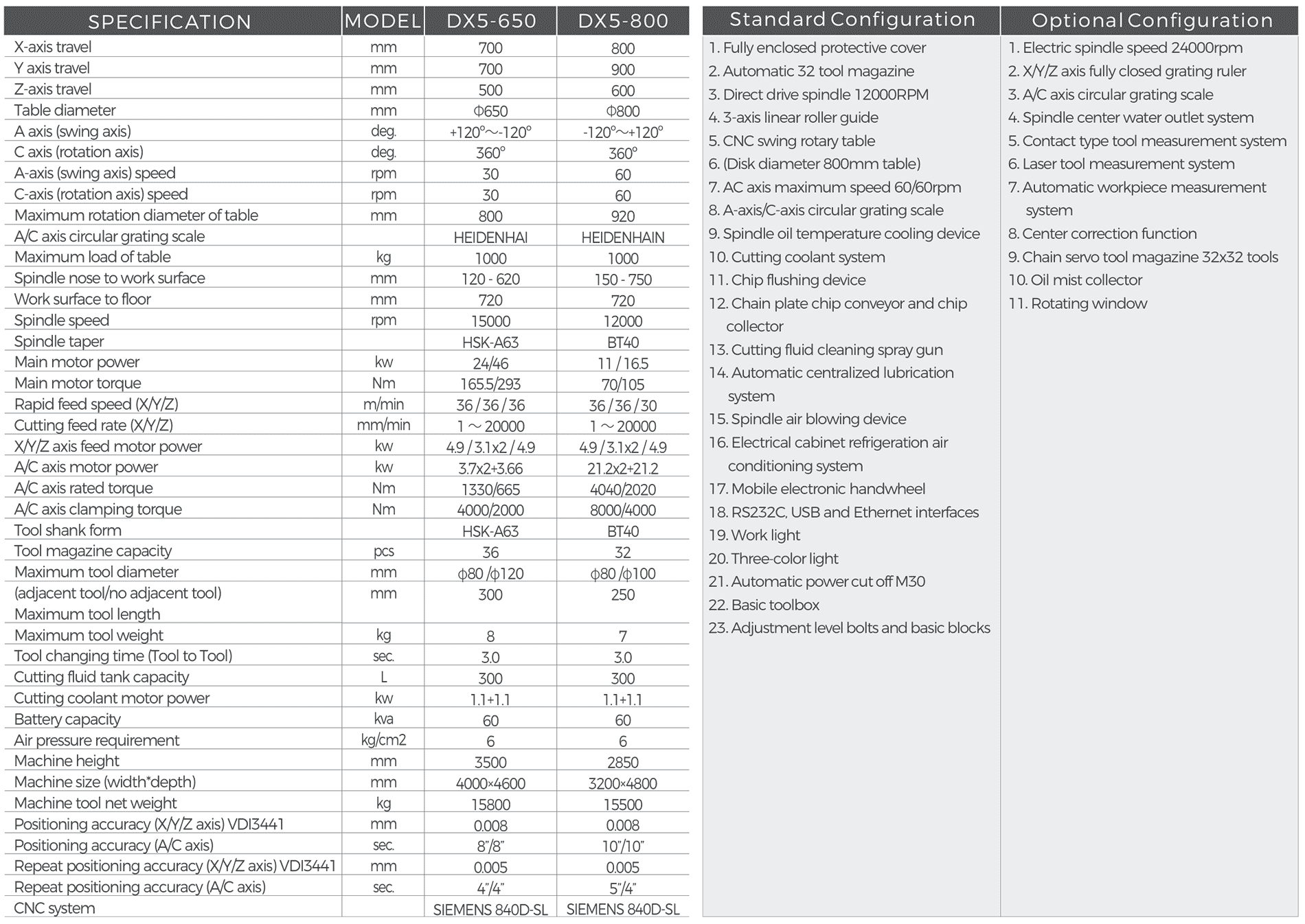

PARAMETERS&CONFIGURATION
