3/4-Axis Vertical Machining Center

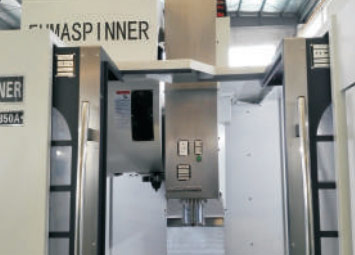

- Structures features an "A" shaped column which the bottom with a large span and a wide base. High rigidity and stability.

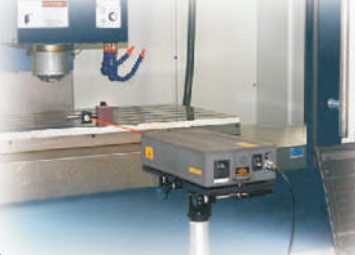

- High positioning accuracy of axis full travel reach to 0.005mm.
- X/Y/Z axes equipped with THK ultra high-precision linear roller guide rails.
- Rapid feed speed of 48/48/48 m/min.
- Taiwan THK C0 ultra-high precision ball screws.

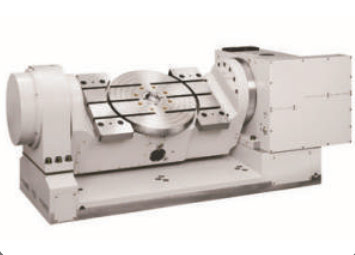

- Can equip with high accuracy A/C axis 4-axis rotary table become UX series 4-axis or 5-axis high speed machining center with SIEMENS 840Dsl system.
EVSeries3/4-Axis Vertical Machining Center
- EV-855A
EV-1055A
EV-1165A
EV-1370A - EV-1475B
EV-1580B
EV-1680B
EV-1890B

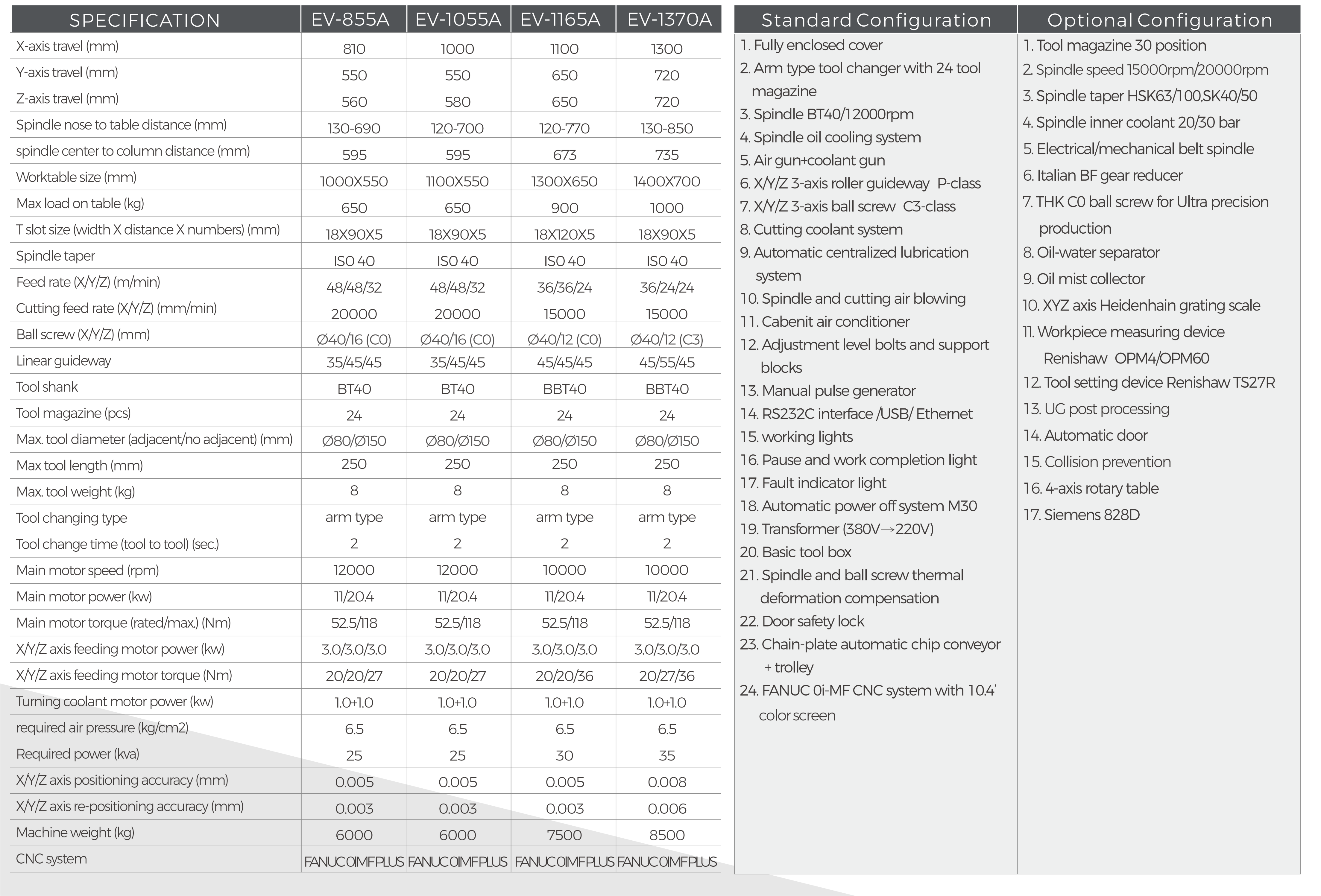

PARAMETERS&CONFIGURATION
_06.png)
_07.png)
