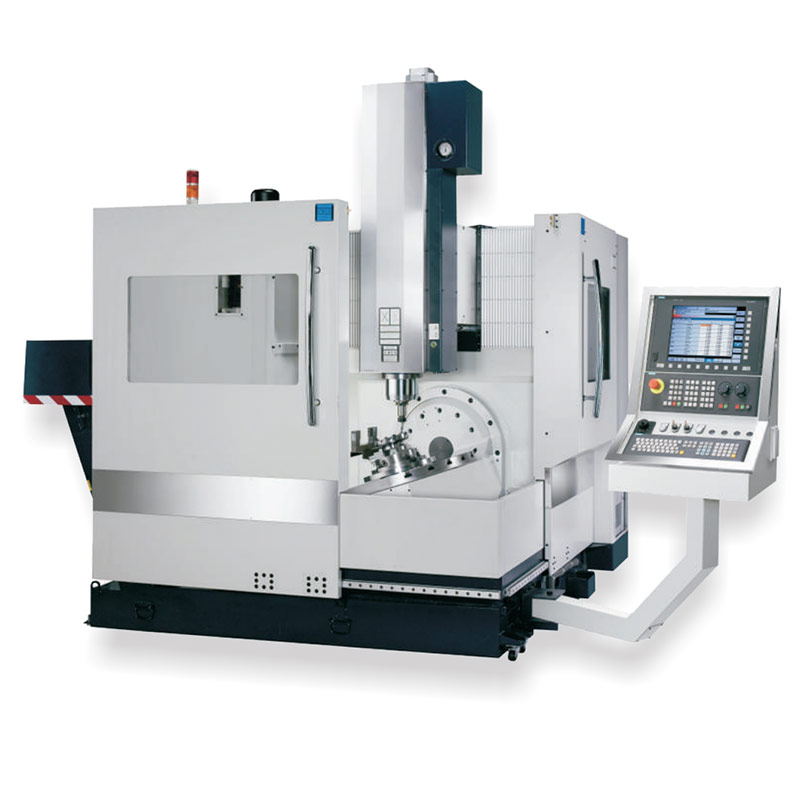

5-Axis Vertical Machining Center
- Classic DU Series deeply cooperated with German SPINNER for hundreds sets.
- Major structural parts are manufactured from high quality cast iron(FC30), tempered and stress relieved for deformation-free performance.
- Linear guide ways on X.Y.Z axis permit high speed traverse.

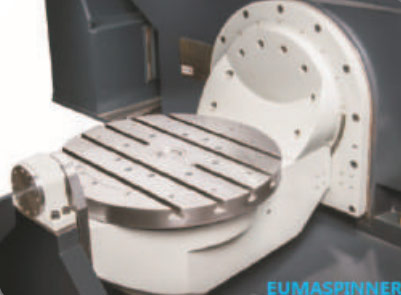

- B-axis rotating angle：±120°,C-axis rotating 360° B.C-axis rotation driven by individual servo motor. Max loading weight 500kg.

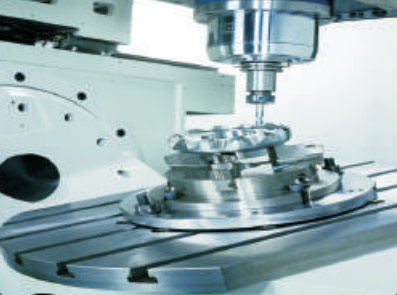

- Complex parts high precision machining in one setup.

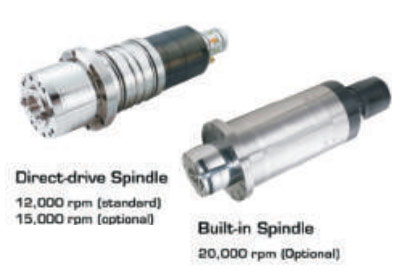

- Direct-drive or built-in spindle as option.
DU5Series5-Axis Vertical Machining Center
- DU5-500
DU4-650
DU5-650 - DU5-1550
DU5-2550

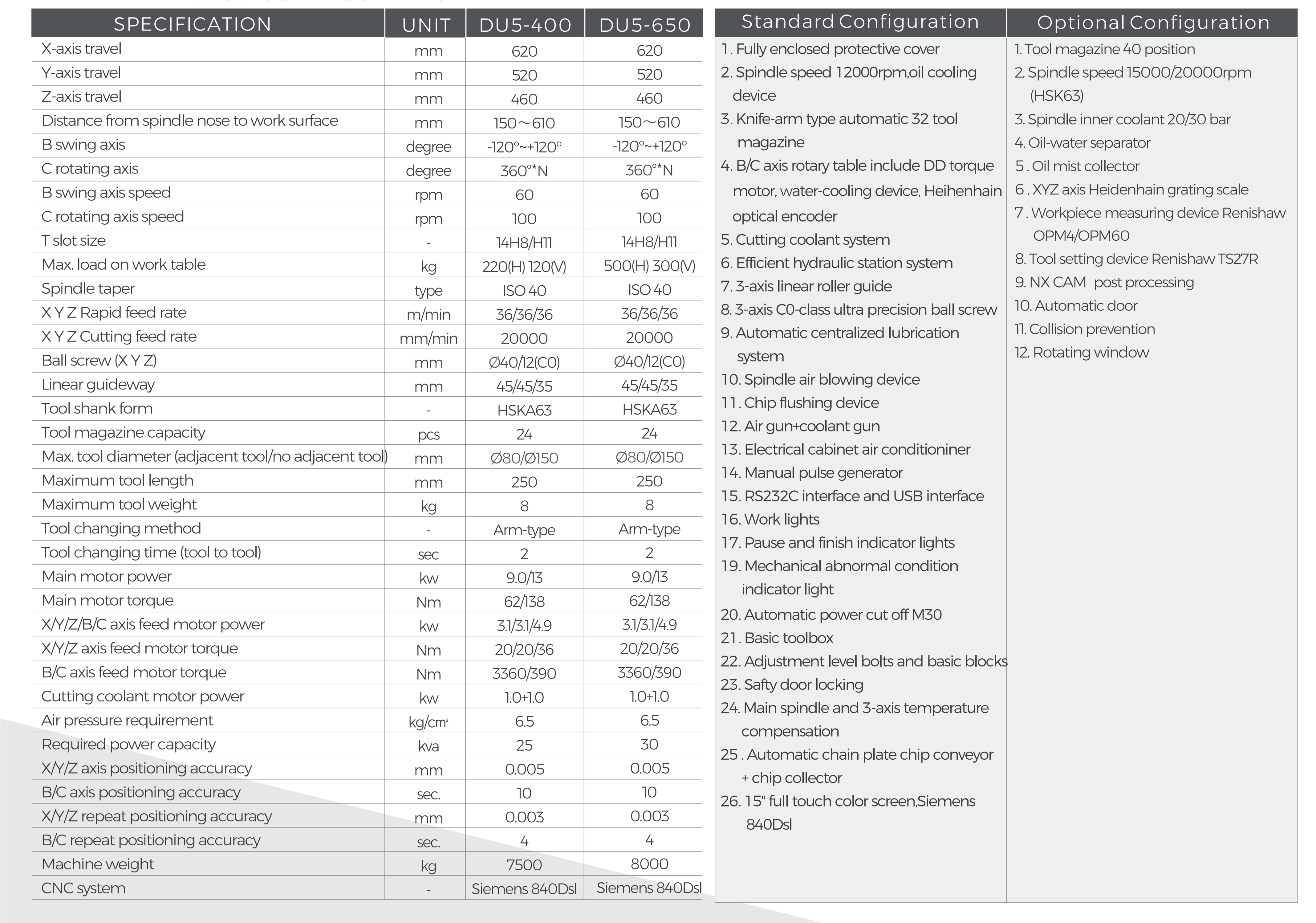

PARAMETERS&CONFIGURATION
